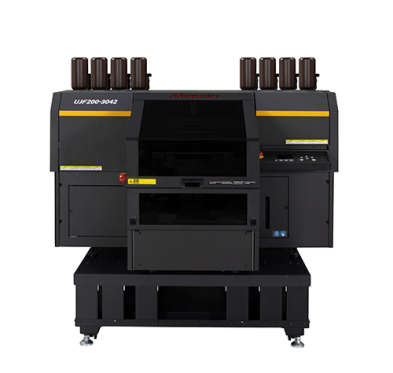

"NEW" Mimaki UJF200-3042 / 6042

More Possibilities. One Printer.
- Expand Your Creative and Business Possibilities with One Printer.

The UJF200 offers greater creative flexibility with high-definition detail and vivid colors.
In addition, automation features streamline production and reduce labor requirements.
It also supports direct printing on thicker and heavier materials, further expanding its application potential.

From on-demand print service providers to industrial product manufacturers,
the UJF200 flatbed UV printer helps businesses unlock new possibilities in printing.

• Stunning Print Quality.: Fine Details, Vibrant Colors. New fluorescent inks available.
• Improve Efficiency and Reduce Labor: Options for Automating the Printing Process
• Improve Productivity: Significantly reduced waiting time during printer startup and cleaning.
• Print Beyond Limits: Direct printing on substrates up to 250 mm thick and 20 kg
• RasterLink8: Genuine RIP Software that maximizes the Productivity and Expressive Power of Your Printer and Inks.

Achieve even more Vivid Colors with Fluorescent Ink

---

Options for Automating the Printing Process

By combining these two options, the entire process—from substrate feeding and printing to collecting—becomes more labor-efficient, enabling unattended operation overnight and on holidays. This allows you to increase production volume even with a limited workforce.

Significantly Reduce Waiting Time, Improve Productivity

Shorten Waiting Times *Compared to previous models

Production per Hour Color Printing / A2 Size / Standard Mode

---

---

Print on white substrates as well as metal and other materials, preserving their original color and texture.

Max. Print Area / Load Capacity

UJF200-3042

---

W300mm × D420mm × H250mm Max. 20kg

---

UJF200-6042

---

W610mm × D420mm × H250mm Max. 20kg

Specifications

		UJF200-3042	UJF200-6042
Printhead		On-demand piezo printhead
Print resolution		600 dpi / 900 dpi / 1,200 dpi / 1,800 dpi
Ink	Type/Color	Hard UV curable ink: ELH-100 (C, M, Y, K, Lc, Lm, W, Cl) Flexible UV curable ink: ELS-120 (C, M, Y, K, Lc, Lm, W, Cl) Fluorescent UV curable ink: EFS-150 (Fp, Fy) *1 Primer: PR-200 *2
	Capacity	1L bottle (ELH-100, ELS-120, EFS-150, PR-200) 250ml bottle (ELH-100, ELS-120, PR-200)
Maximum printable area		300 mm x 420 mm (equivalent to A3)	610 mm x 420 mm (equivalent to A2)
Media	Thickness	250 mm (9.8") or less
	Weight	20 kg (44.1 lb) or less
Interface		Ethernet 1000BASE-T, USB2.0
Certifications		VCCI class A / FCC class A / ETL IEC 62368-1 / CE Marking (EMC, Low voltage, Machinery directive, and RoHS) / CB / REACH / Energy Star / EAC / RCM
Power supply		Single-phase AC100-240V±10%, 50/60Hz±1Hz
Power consumption		Max.: 450 W or less / Standard: 250 W / Min.: 4.5 W or less (sleep)
Operational environment		Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Temperature gradient: Less than ± 10 °C/h (± 50 °F/h) Dust level: Similar to standard office environments
Dimensions (W × D × H) *3		1,380 x 1,166 x 798 mm (54.3 x 45.9 x 31.4")	1,680 x 1,166 x 798 mm (66.1 x 45.9 x 31.4")
Weight		171kg (377.0 lb)	187 kg (412.3 lb)

*1: Use in combination with ELH-100 or ELS-120.
*2: Use in combination with UV curable inks.
*3: Heights of ink bottles and dedicated stand are not included.

• Some of the screens and printing samples in this website are artificial renderings.
• Specifications are subject to change without notice.
• All trademarks or registered trademarks are the property of their respective owners.
• Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
